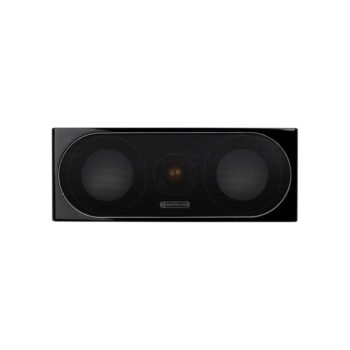

Radius 200
Designed for rack or shelf mounting in a dedicated home theatre system. Placed front and centre in a serious AV system, twin 4 C-CAM mid/bass drivers astride a 1 C-CAM tweeter result in the compact Radius 200 anchoring the entire sound field with life-like fidelity.
Ultra compact dedicated centre speaker
Dual C-CAM bass drivers with C-CAM tweeter in MTM style configuration – Radius features bass drivers with concave cone profiles, introduced by Monitor Audios top-of-the-range Platinum speakers and applied subsequently to Gold GX. Extensive research and FEA modelling have allowed us to perfect the relationship between the radiating diaphragm and its motor design, introducing larger motor sizes and voice coils for increased excursion, higher power capability and reduced distortion.
C-CAM Gold Dome tweeter – optimised to deliver the finest and widest performance within the compact Radius cabinets. It benefits from a more efficient rear-venting design, releasing air trapped and compressed at the back of the tweeter dome, and guiding it around the drive assembly to a rear-loading chamber.
HiVe II port design – Straight from Platinums design blueprint, the HiVe reflex port makes its Radius debut. Its shaped to have the same effect on airflow as a gun-barrel on a bullet. Rifled grooves inside the port help to accelerate the flow and reduce turbulence, so air moves in and out of the port more efficiently, for a faster more dynamic bass response.
Single through-bolt driver fixing provides mechanical de-coupling and enhanced mid-band clarity and resolution. The through-bolts also act as rigid cross bracing to give a very solid non-resonant cabinet.Specification
Radius 200
Specifications
Frequency Response 60Hz – 35KHz
Sensitivity 86dB
Nominal Impedance 6 ohms
Power Handling Single (RMS) 100 watts
System Power Handling (RMS) 150 watts
Recommended Amplifier Requirements 40-150 watts
Maximum SPL (dBA) 106
Bass Alignment Bass reflex – rear ported
Driver complement
2 x 4 (100mm) C-CAM cone bass/mid driver
1 x 1 (25mm) C-CAM gold dome tweeter
Cabinet Dimensions (H x W x D) 125 x 330 x 140mm
Cabinet Dimensions (H x W x D)(Inc Grille & Terminals) 125 x 330 x 164mm
Weight 3.6kg (7lb 14oz)
